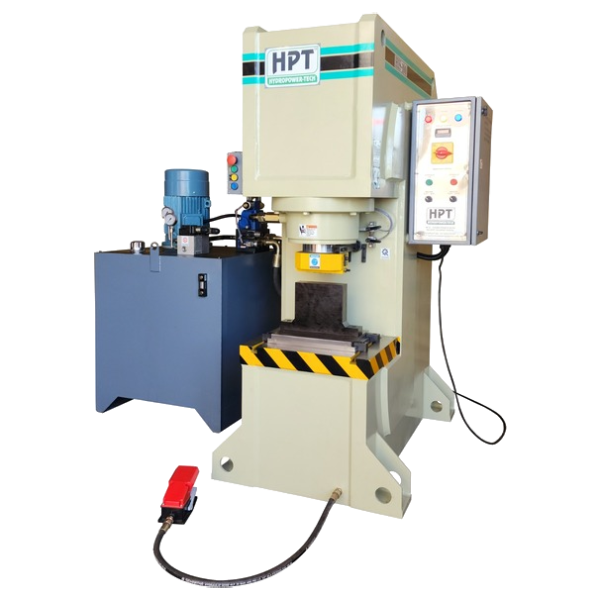

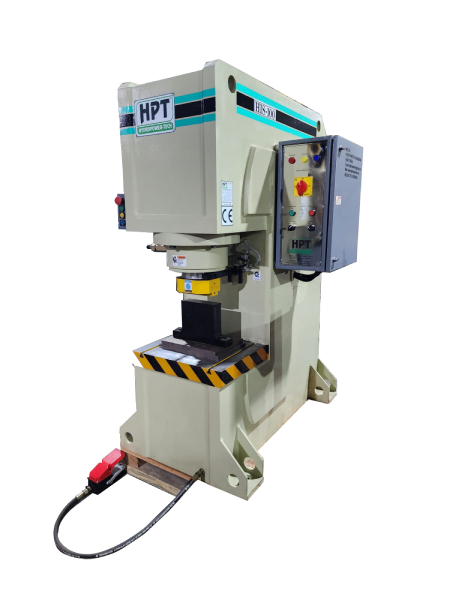

Hydraulic Stamping Machine
Strong. Reliable. Built by HPT.
HPT, A Leading Manufacturer of Electrical Panel Door Punching Machine
Hydro Power-Tech Engineering (HPT), based in Gujarat, India, has built a strong reputation for delivering high-performance Hydraulic Stamping Machines.
A hydraulic stamping machine uses hydraulic pressure to mark metal parts such as tubes, rods, plates, and sheets. It consists of a mainframe with a ram, a hydraulic pump for power, and controls to adjust pressure and stroke, making it ideal for marking part numbers, serial numbers, and other details.
- High accuracy: Hydraulic stamping machines can apply high pressure, which allows for precise marking of metal parts.
- Versatility: Hydraulic stamping machines can be used to mark a wide variety of metal parts.
- Durability: Hydraulic stamping machines are durable and can withstand the rigors of industrial use.
- Ethernet interface
Hydraulic stamping machines are a versatile and powerful tool that can be used to mark a wide variety of metal parts. They are used in a wide range of industries, including automotive, aerospace, and manufacturing.
“Power. Precision. Performance – The HPT Ironworker Promise.”
Technical Specifications -
Specifications
| Particular | HIS-100 | HIS-150 | HIS-180 |
|---|---|---|---|
| Construction Type | Constructed in "C" Frame | ||
| Capacity (in MT) | 100 | 150 | 180 |
| No.of Letter | 12 Nos | 16 Nos | 20 Nos |
| Max. Angle Size | 225 x 225 x 25 | ||
| No. of Cassette | 1 Nos | ||
| Size. of Character | 12 x 20 mm | ||
| Marking Depth | 1 mm | 0.8 to 1 mm | |
| Stroke Length | 40 mm | 45 mm | |
| Cycle Time | 25 - 30 Strokes / Min. | ||
| Cylinder Type | 1 Piece Body | ||
| Working Height upto Die | 800 mm | ||
| Motor (HP) | 12.5 HP | 15 HP | 20 HP |
| Machine Dimension | 1900 x 820 x 1355 mm | 2050 x 900 x 1400 mm | 2225 x 950 x 1475 mm |
| Net Weight (Approx.) | 4500 KG | 6000 KG | 6800 KG |
| The HPT Stamping Machine are constructed in C Frame with rigid body of heavy thick plates. The Cylinder body is one piece made from solid bar after boring. The machine comes with load bearing plate (Heat Treated & Ground) on Bolster | |||
Built for Precision and Performance
Watch Our Hydraulic Punching Machines in Action :
Discover the strength, accuracy, and efficiency of our Hydraulic Punching Machines in action. Watch how our models deliver powerful, precise hole punching on thick and tough materials, ensuring reliability and consistency for industrial applications.
