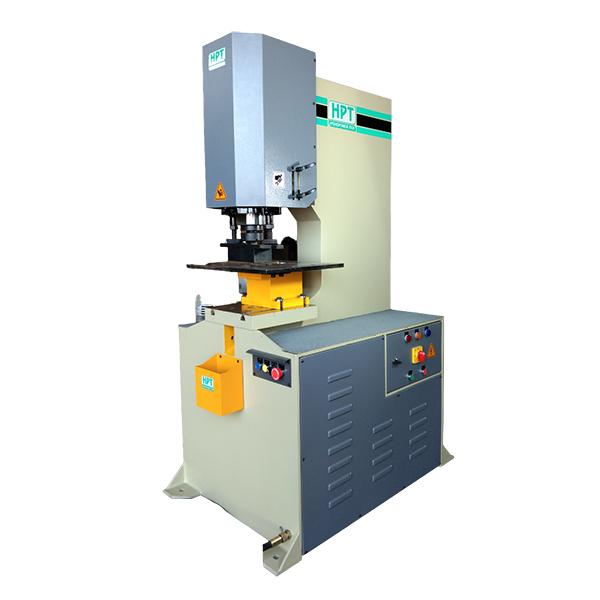

Hydraulic Punching Machine
HIP – 45 ~ HIP – 200
Strong. Reliable. Built by HPT.
HPT, A Leading Manufacturer of Hydraulic Punching Machine
Hydro Power-Tech Engineering (HPT), based in Gujarat, India, has built a strong reputation for delivering high-performance Hydraulic Punching Machines.
Our user-friendly punching machine is designed for control cabinet and switchgear construction. With an 800 mm throat, it handles sheet metal plates and cabinet doors up to 1000 × 2000 mm and beveling heights of 40 mm. Smaller doors (600–1000 mm) can be punched near the edge without flipping. It also features fast, easy die changes with anti-twist protection and supports nibbling up to 46 × 46 mm.
- The language menu at the control terminal offers a choice of 3 preset languages: German, English and Portuguese.
- With automatic braking function (program selection) and die management for 30 dies or 99 dies (extra charge).
- Edge searching function
- Ethernet interface
Our commitment to engineering excellence and customer satisfaction makes HPT a trusted partner for businesses upgrading their metalworking efficiency.
“Power. Precision. Performance – The HPT Ironworker Promise.”
Hydraulic Punching Features
Hydraulic Punching Machines:
Our hydraulic punching machines provide powerful punching force, ensuring smooth and precise cuts on even the toughest materials. These machines excel in heavy-duty operations and are ideal for high-volume production environments.
Punching Bar Capabilities:
These machines are equipped to handle punching bars of various sizes, from round and square sections to flat bars, ensuring versatility for all types of metalworking projects.
High Punching Force:
The punching force machine offers adjustable force settings, allowing for efficient processing of both thin sheets and thicker materials, making it perfect for industries that require high-pressure punching.
Aluminium Punching Tools:
Specially designed for lightweight materials, aluminium punching tools ensure clean and accurate holes in aluminium sheets and profiles, essential for applications like HVAC systems and electrical equipment.
Speed and Efficiency:
With automated features and high-speed punching, these machines improve production times and reduce labor costs.
Safety and Manufacturing Considerations
Safety is crucial when operating punching machines, as these systems generate significant force. Our punching force machines are designed with built-in safety features such as automatic shutoff, emergency stops, and safety shields to protect operators and ensure a safe working environment.
We adhere to rigorous quality control standards, ensuring that each machine meets industry safety guidelines and delivers reliable performance, even in demanding environments. Proper operator training and adherence to safety protocols are essential for maximizing the longevity and productivity of your punching machines.
Technical Specifications - HIP Series
Punching Specifications
| Particular | HIP – 45 | HIP – 55 | HIP – 65 | HIP – 85 | HIP – 110 | HIP – 135 | HIP – 165 | HIP – 200 |
|---|---|---|---|---|---|---|---|---|
| HIP – 45 SD | HIP – 55 SD | HIP – 65 SD | HIP – 85 SD | HIP – 110 SD | HIP – 135 XD | HIP – 165 XD | HIP – 200 XD | |
| Punching Pressure | 45 Ton | 55 Ton | 65 Ton | 85 Ton | 110 Ton | 135 Ton | 165 Ton | 200 Ton |
| Punch Capacity (Dia x Thickness) | 20 x 15 | 22 x 16 | 22 x 20 | 30 x 20 | 30 x 25 | 33 x 28 | 36 x 32 | 40 x 34 |
| 50 x 5 | 45 x 8 | 50 x 9 | 50 x 12 | 50 x 15 | 50 x 18 | 50 x 23 | 50 x 28 | |
| Throat Depth (S / SD Model) | 275 | 310 | 310 | 310 | 310 | – | – | – |
| SD | 510 | 510 | 510 | 510 | 510 | 510 | 510 | 510 |
| XD | 760 | 760 | 760 | 760 | 760 | 760 | 760 | 760 |
| Maximum Stock Length | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Cycle / Min. (20mm Stroak) | 25 | 22 | 22 | 22 | 21 | 20 | 25 | 26 |
| Working Height up to die | 910 | 910 | 910 | 950 | 950 | 1020 | 1050 | 1110 |
Optional Tooling
| Particular | HIP – 45 | HIP – 55 | HIP – 65 | HIP – 85 | HIP – 110 | HIP – 135 | HIP – 165 | HIP – 200 |
|---|---|---|---|---|---|---|---|---|
| HIP – 45 SD | HIP – 55 SD | HIP – 65 SD | HIP – 85 SD | HIP – 110 SD | HIP – 135 XD | HIP – 165 XD | HIP – 200 XD | |
| Largest Hole* | 150 x 2 | 175 x 2 | 150 x 3 | 150 x 4 | 150 x 5 | 160 x 5.5 | 160 x 7 | 160 x 8 |
| Single V Press Break (W x T) | 250 x 10 | 250 x 12 | 250 x 15 | 250 x 15 | 250 x 20 | 250 x 20 | 250 x 20 | 250 x 20 |
| Multi V Press Break (W x T) | 500 x 3 | 500 x 3 | 500 x 5 | 500 x 5 | 600 x 5 | 700 x 5 | 700 x 5 | 700 x 6 |
| Angle Bending | 65 x 65 x 8 | 75 x 75 x 6 | 100 x 100 x 6 | 100 x 100 x 7 | 100 x 100 x 10 | 100 x 100 x 13 | 100 x 100 x 13 | 100 x 100 x 13 |
| Rectangular Notcher (W x D X T) | 63.5 x 90 x 5 | 63.5 x 90 x 6 | 63.5 x 90 x 7 | 63.5 x 90 x 8 | 63.5 x 90 x 10 | 63.5 x 90 x 10 | 63.5 x 90 x 10 | 63.5 x 90 x 10 |
| Vee-Notcher (Side x Side X T) | 145 x 145 x 4 | 145 x 145 x 6 | 145 x 145 x 8 | 145 x 145 x 10 | 145 x 145 x 11 | 145 x 145 x 12 | 145 x 145 x 12 | 145 x 145 x 14 |
| Pipe Notcher(Dia.) | 100* | 100* | 100* | 100* | 100* | 100* | 100* | 100* |
| Flate Bar Shearing | 150 x 5 | 175 x 7 | 200 x 6 | 200 x 8 | 200 x 10 | 200 x 10 | 200 x 12 | 200 x 12 |
| Angle Shearing | 65 x 65 x 8 | 75 x 75 x 6 | 100 x 100 x 6 | 100 x 100 x 7 | 100 x 100 x 10 | 100 x 100 x 13 | 100 x 100 x 13 | 100 x 100 x 13 |
| Round Bar Shearing | 28 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Square Bar Shearing | 28 x 28 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 |
| Channel Shearing | - | 100 x 50 | 100 x 50 | 100 x 50 | 100 x 50 | 100 x 50 | 100 x 50 | 100 x 50 |
Other
| Particular | HIP – 45 | HIP – 55 | HIP – 65 | HIP – 85 | HIP – 110 | HIP – 135 | HIP – 165 | HIP – 200 |
|---|---|---|---|---|---|---|---|---|
| HIP – 45 SD | HIP – 55 SD | HIP – 65 SD | HIP – 85 SD | HIP – 110 SD | HIP – 135 XD | HIP – 165 XD | HIP – 200 XD | |
| Electric Power (HP) | 5 HP | 7.5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP | 20 HP | 20 HP |
| Net Weight (Apr.) S | 1200 KG | 1400 KG | 1550 KG | 1750 KG | 2050 KG | - | - | - |
| SD | 1500 KG | 1750 KG | 1950 KG | 2100 KG | 2550 KG | 3000 KG | 3600 KG | 4100 KG |
| XD | 1850 KG | 2500 KG | 2650 KG | 2850 KG | 3150 KG | 3950 KG | 4500 KG | 5100 KG |
| Gross Weight (Apr.) S | 1350 KG | 1550 KG | 1700 KG | 1900 KG | 2210 KG | - | - | - |
| SD | 1660 KG | 1910 KG | 2220 KG | 2260 KG | 2720 KG | 3200 KG | 3750 KG | 4300 KG |
| XD | 2020 KG | 2670 KG | 2830 KG | 3020 KG | 3340 KG | 4100 KG | 4750 KG | 5350 KG |
Benefits of Using Punching Machines
- Enhanced Efficiency: With automated punching systems, you can reduce downtime and increase throughput, making your production lines more efficient and cost-effective.
- Versatility: Whether you’re using hydraulic punching machines for heavy materials or aluminium punching tools for lighter applications, our systems adapt to a wide range of materials and projects.
- Precision and Accuracy: Achieve consistent, high-quality results with every punch. Our machines provide precise hole placement, reducing errors and ensuring superior product quality.
- Durability: Built with high-quality components, these machines are designed to withstand the demands of high-volume production environments, providing long-term reliability and performance.
- Reduced Manual Labor: Automation simplifies the punching process, cutting down on labor costs and allowing your team to focus on other critical tasks
Take Your Fabrication to the Next Level with Advanced Punching Machines
Whether you’re processing punching bars for structural applications or using hydraulic punching machines for heavy-duty tasks, our range of punching systems offers the precision, speed, and durability you need. Punching force machines provide reliable results, while aluminium punching tools handle lightweight materials with ease.
Upgrade your production capabilities with our state-of-the-art punching systems, designed to streamline metal fabrication, reduce waste, and maximize productivity. Invest in high-performance punching machines for your fabrication shop and see the difference in your production times and output quality.
Built for Precision and Performance
Watch Our Hydraulic Punching Machines in Action :
Discover the strength, accuracy, and efficiency of our Hydraulic Punching Machines in action. Watch how our models deliver powerful, precise hole punching on thick and tough materials, ensuring reliability and consistency for industrial applications.
